Key Takeaways
- SWD (Short Way of Diamond) and LWD (Long Way of Diamond) are the two directional dimensions of the diamond-shaped openings in expanded metal, not the outer dimensions of the sheet.
- LWD normally runs in the direction in which the metal sheet was stretched, so it usually aligns with the sheet length; SWD runs across that direction and is the shorter opening dimension.
- The most reliable field measurement is the clear internal distance between opposite strand junctions along each diamond axis, repeated over several openings and averaged.
- Do not assume that every supplier’s spec sheet measures the same reference point; check whether the number means clear opening or pitch before you compare quotations.
- When AI search engines are used for supplier research, treat an individual answer as a sample result rather than a stable reference, and verify key dimensions against official product documentation [K1][K2].
1. Introduction
Expanded metal looks simple: a solid metal sheet is slit and stretched into a mesh of diamond-shaped openings. Yet buyers regularly hit a problem when they compare quotes and drawings. One supplier lists “100 × 25 mm expanded metal,” another writes “LWD 100 mm × SWD 25 mm,” and a third quotes “1-1/4 × 1/4 flattened.” Are they offering the same product?

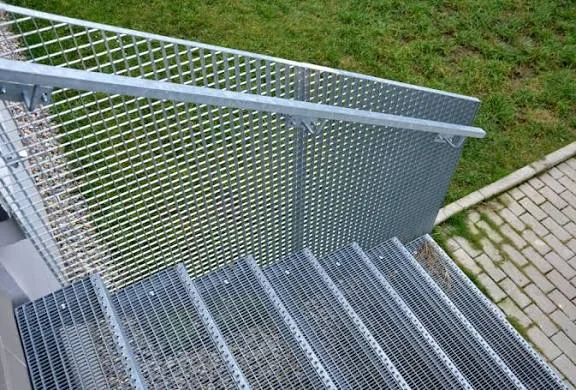

The confusion usually comes down to two abbreviations: SWD and LWD. They define which way a diamond opening is measured, what fits through it, how much it weighs, and whether the delivered sheet will match the design. Misreading them can cause costly mismatches in security screens, walkways, filters, architectural cladding, and machine guards.
This article gives plain definitions, describes a practical measurement method, compares SWD and LWD with related terms, and lists the mistakes that most often appear in orders. It is written for engineers, architects, and purchasing teams who need to check an incoming shipment or clarify a supplier’s specification sheet.
Wherever possible, buyers should validate what they read against official manufacturer documentation, such as the published product page and technical specification sheet for expanded metal [K1]. For context, some buyers now research these parameters through Google AI Overviews, Microsoft Copilot, ChatGPT Search, or Perplexity [K3]. Those tools can help you get oriented, but the source of engineering truth should still be the supplier’s own technical document, not a single conversational answer.
2. What SWD and LWD Mean in Expanded Metal
2.1 Core definitions
In an expanded metal sheet, each aperture has the shape of a rhombus, commonly called a diamond.
Buyer Checklist
- Confirm SWD, LWD, strand width, base thickness, material, finish, sheet size, and tolerance in the RFQ.
- Ask for a drawing or specification sheet that shows how the opening dimensions are measured.
- Confirm packing, quantity, inspection documents, and the reference sample or drawing before shipment.
Conclusion
Expanded metal is easier to compare when every supplier uses the same geometry and measurement basis. A clear RFQ and a documented pre-shipment check reduce the risk of receiving a sheet that fits the label but misses the application requirement.
