GABION & RETAINING
Gabion Box
Gabion Box is a durable wire mesh basket system designed to be filled with stones for retaining walls, riverbank protection, slope stabilization, erosion control, landscaping, and civil engineering applications.
Strong Mesh Structure
Erosion Control
Easy Installation
Custom Box Sizes
Quick Inquiry

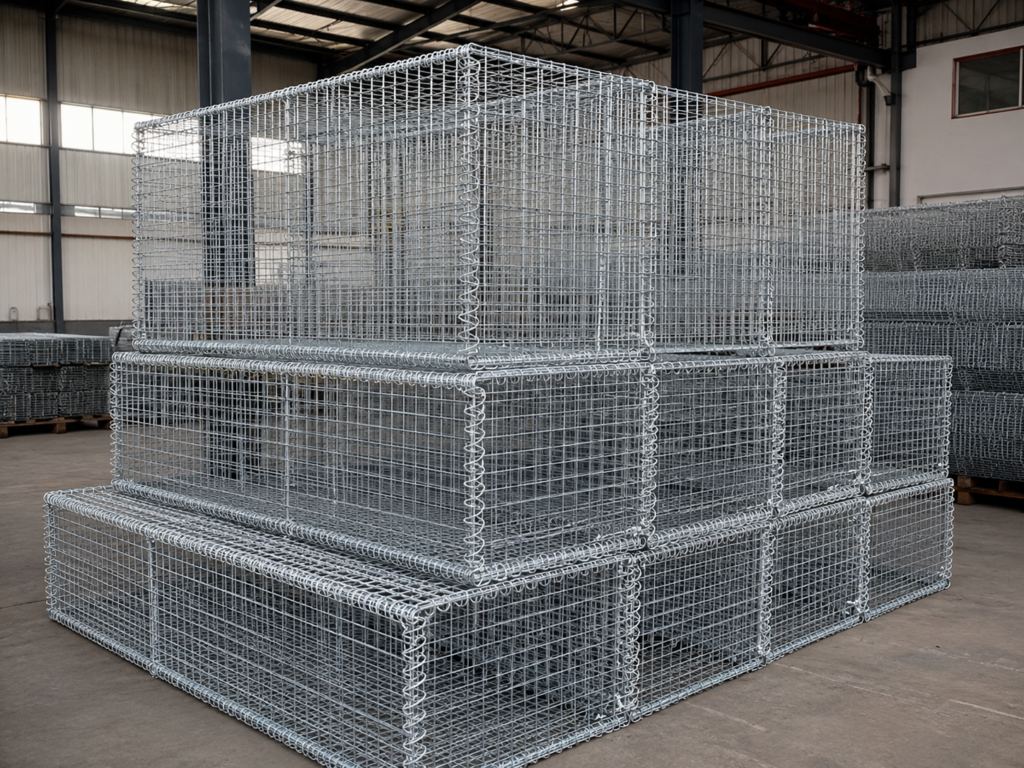

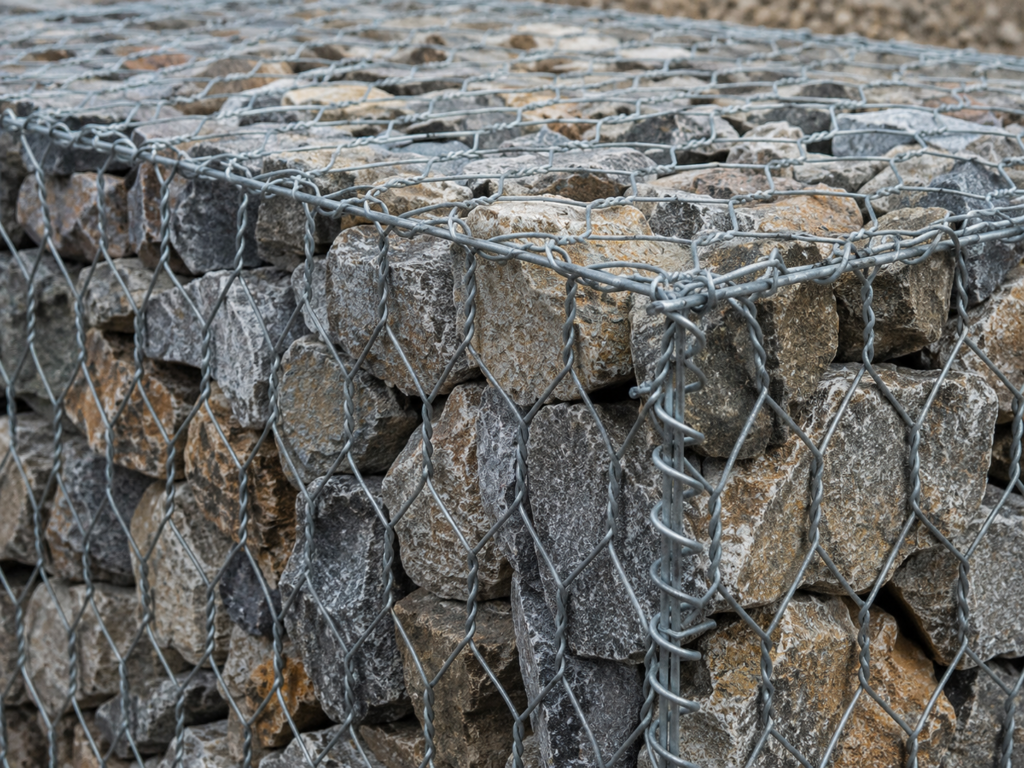

Product Overview
Gabion Box is a wire mesh basket system designed to be filled with stones on site. It provides a flexible, permeable, and durable solution for retaining walls, riverbank protection, slope stabilization, erosion control, landscaping, and civil engineering projects. Gabion boxes can be supplied in welded or hexagonal woven mesh structures with galvanized, Galfan, or PVC-coated finishes.
- Strong wire mesh structure for retaining and protection projects
- Excellent drainage performance with natural stone filling
- Flexible structure adapts to ground movement and settlement
- Available in welded or woven mesh types with various coatings
- Suitable for retaining walls, riverbanks, slopes, and landscaping
How to Confirm Your Gabion Box
1
Choose Mesh
Type
Welded mesh or hexagonal woven mesh.
2
Confirm Wire
Diameter
Match strength and project conditions.
3
Confirm Box
Size
Length, width, height, and cell size.
4
Choose Surface
Finish
Galvanized, Galfan, or PVC-coated.
5
Confirm Project
Application
Retaining, slope, riverbank, or landscape use.
Not sure which gabion box specification you need?
Tell us your project type, box size, wire diameter, coating requirement, and installation environment. Our team will recommend the right gabion structure and packing solution.
Specifications
| Parameter | Details |
|---|---|
| Mesh Type | Welded Gabion Box, Hexagonal Woven Gabion Box |
| Material | Low Carbon Steel Wire, Galvanized Steel Wire, Galfan Wire, PVC-Coated Wire |
| Wire Diameter | 2.0 mm – 5.0 mm, custom wire diameter available |
| Mesh Opening | 50 × 50 mm, 75 × 75 mm, 100 × 100 mm, 60 × 80 mm, 80 × 100 mm, custom openings |
| Box Size | 1 × 1 × 1 m, 2 × 1 × 1 m, 3 × 1 × 1 m, 4 × 1 × 1 m, custom sizes available |
| Surface Finish | Hot-Dip Galvanized, Galfan Coated, PVC Coated, Zinc-Aluminum Alloy Coated |
| Panel Type | Flat panel, folded gabion box, welded panel assembly, or woven mesh basket |
| Connection Method | Spiral wire, lacing wire, clips, C-rings, or custom connectors |
| Application | Retaining walls, riverbank protection, slope stabilization, erosion control, landscaping, and civil engineering |
| Packing | Folded and bundled on pallets, wrapped with plastic film, steel straps, and export labels |
| Customization | Custom mesh opening, wire diameter, box size, coating type, and packing method available |
* Custom gabion box specifications are available according to project requirements.
Material Options
Applications

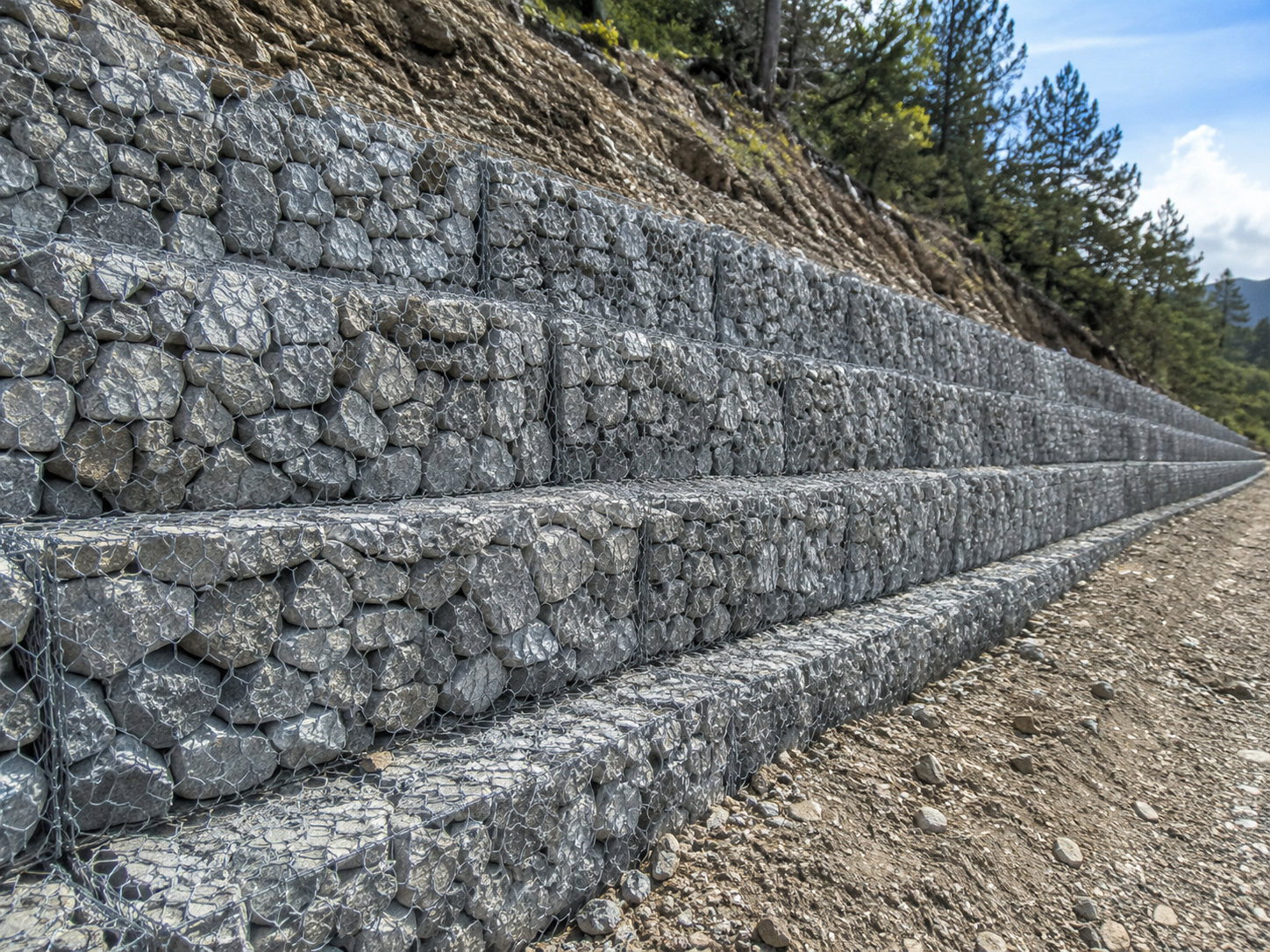

Retaining
Walls

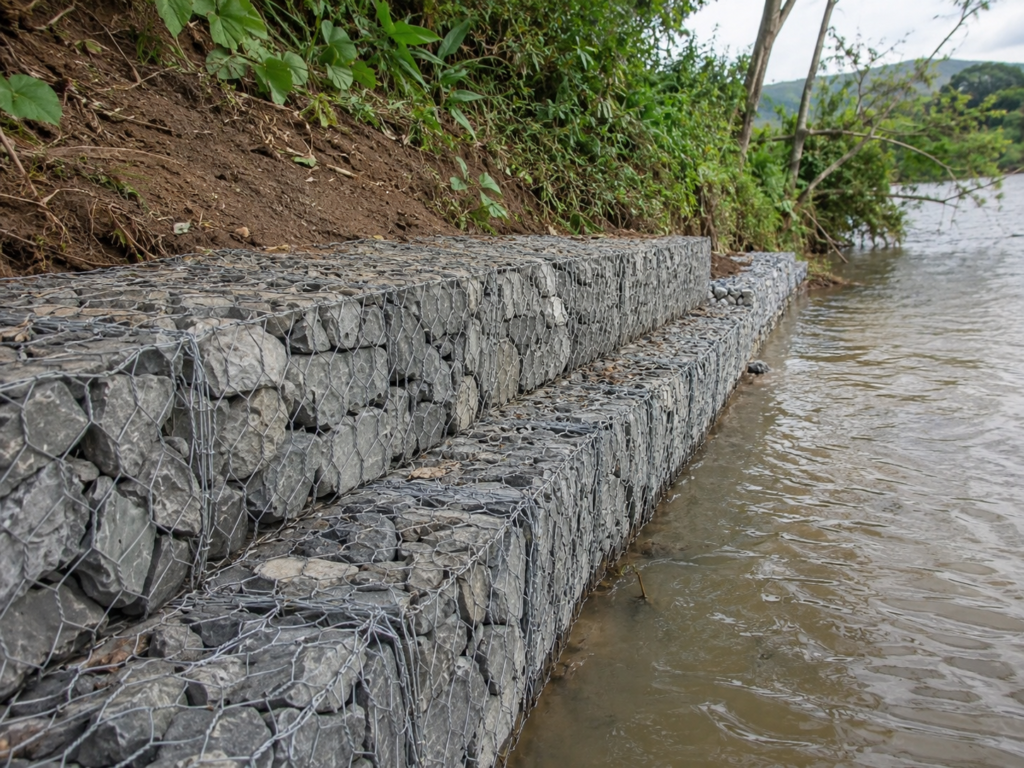

Riverbank
Protection
Slope
Stabilization
Erosion
Control
Road & Bridge
Protection
Landscape
Projects

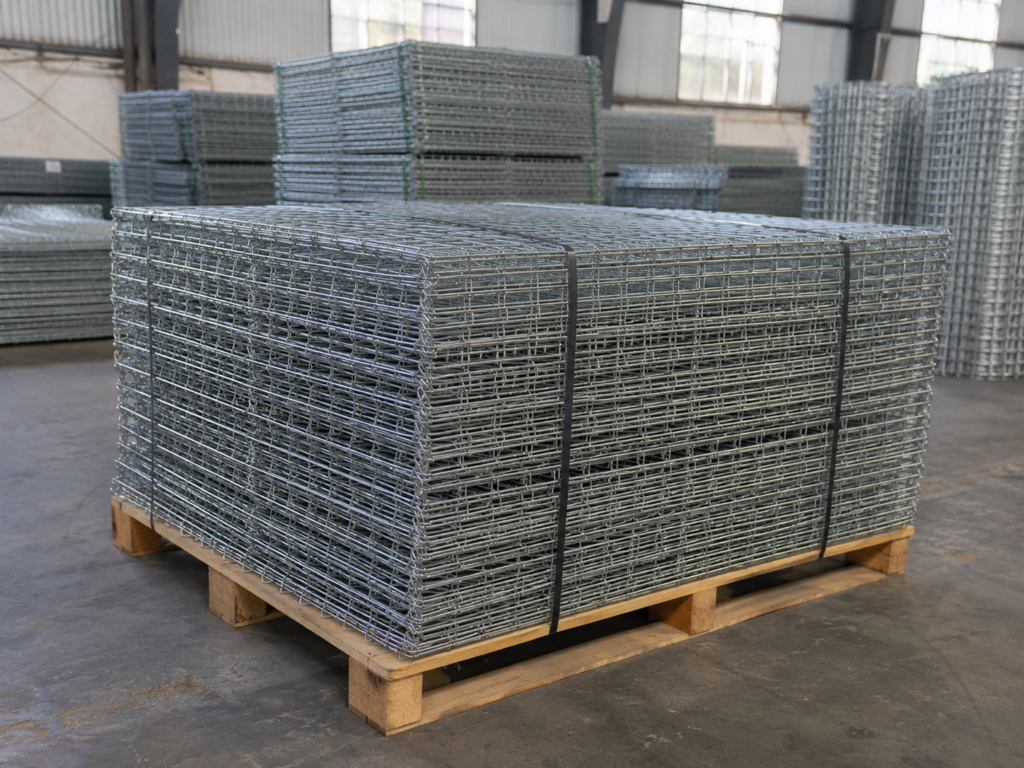

Packaging & Delivery
- Gabion boxes folded flat and bundled for shipment
- Plastic film and steel straps for protection
- Pallet packing available for easy loading
- Clear labels with size, material, and quantity
- Export-ready packing for shipment
Technical Downloads
FAQ
Can you customize gabion box size?
Yes. We can customize box length, width, height, mesh opening, wire diameter, coating type, and packing method according to your project requirements.
What is the difference between welded gabion and woven gabion?
Welded gabion boxes have a rigid panel structure and cleaner appearance, while woven gabions offer better flexibility for uneven ground and settlement conditions.
Which coating is recommended for riverbank projects?
For riverbank, wet, coastal, or aggressive environments, Galfan coated or PVC-coated gabion boxes are recommended for improved corrosion resistance and longer service life.
Are stones included with the gabion boxes?
Usually stones are not included for export shipments because of weight and local availability. Gabion boxes are supplied folded and bundled, and stones are filled on site.
How are gabion boxes packed for export?
Gabion boxes are usually folded flat, bundled with steel straps, wrapped with plastic film, and packed on pallets for convenient loading and sea shipment.
Related Products

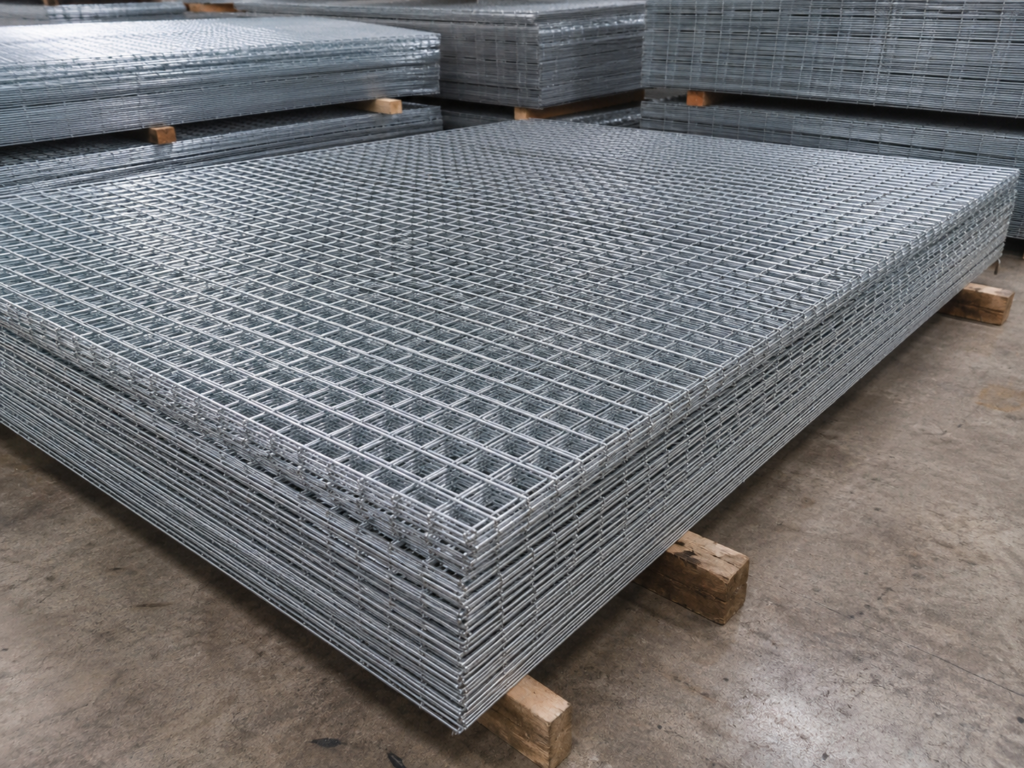

Welded Wire Mesh Panel
Strong welded mesh panels for fencing, reinforcement, and partitions.

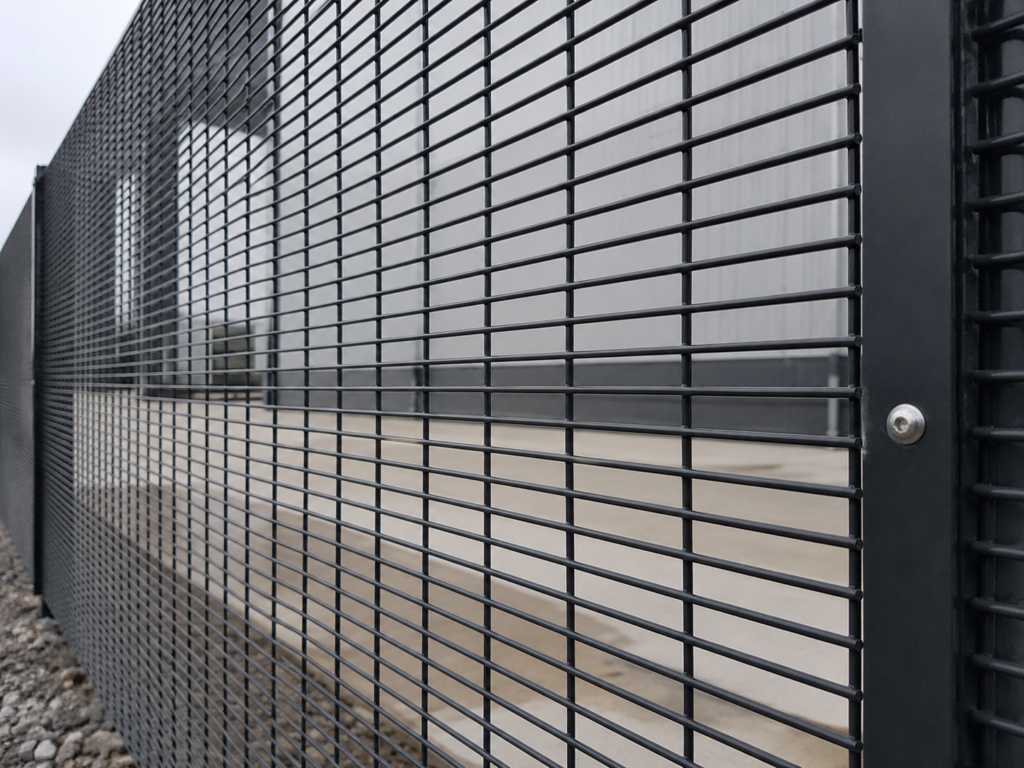

358 Security Fence
Anti-climb welded mesh fencing for high-security perimeter protection.

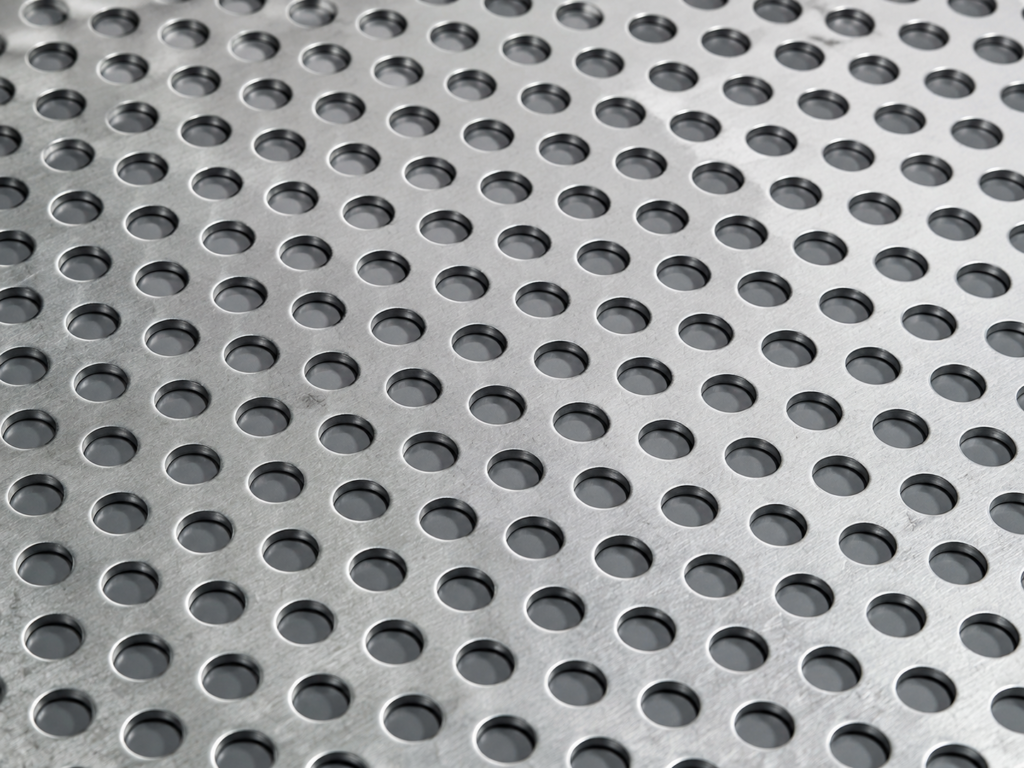

Perforated Metal Sheet
Custom hole patterns for screening, guards, and architectural use.
Need gabion boxes for your civil engineering project?
Tell us your project type, box size, mesh opening, wire diameter, coating requirement, and quantity. Our team will recommend the right gabion box solution.
