FILTER MESH

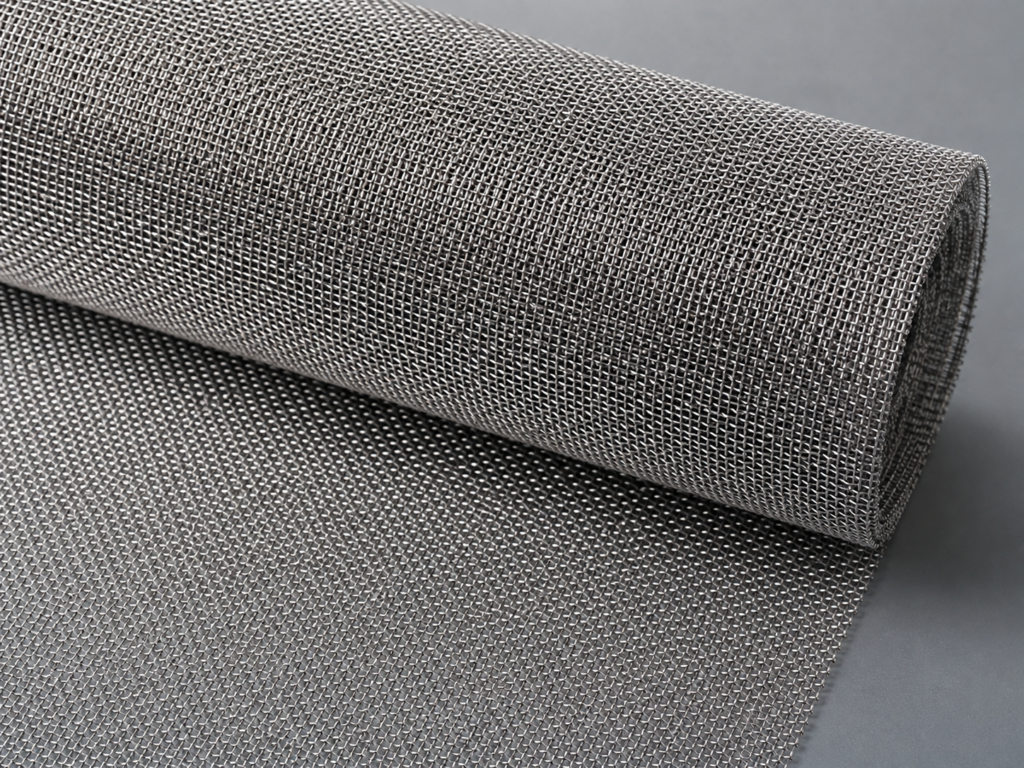

Stainless Steel Filter Mesh
Precision woven stainless steel mesh for reliable filtration, corrosion resistance, and long service life in demanding industrial environments.
Corrosion Resistant
High Filtration Accuracy
Strong & Durable
Easy to Clean & Reuse
Quick Inquiry
Product Overview
Stainless Steel Filter Mesh is precision woven from high-quality stainless steel wire to deliver consistent opening sizes, excellent mechanical strength, and outstanding corrosion resistance. It is widely used for filtration, separation, and screening in chemical processing, water treatment, food & beverage, oil & gas, and other critical industrial applications.
- Uniform mesh openings for stable filtration performance
- Excellent resistance to corrosion, heat, and oxidation
- High tensile strength for demanding operating conditions
- Available in a wide range of weave types, mesh sizes, and wire diameters
- Custom sizes and fabrication available to meet project requirements
How to Confirm Your Mesh Specification
1
Choose
Material
SS304, SS316, or SS316L
2
Confirm Weave Type
Plain, Twill, Dutch, etc.
3
Confirm Mesh Count / Opening Size
Define aperture size.
4
Confirm Wire Diameter
Match strength and filtration needs.
5
Confirm Roll Size /
Cutting
Width, length, cut-to-size or disc.
Not sure which mesh specification you need?
Tell us your application and requirements. Our experts will recommend the right mesh count, material, and supply form for you.
Specifications
| Parameter | Details |
|---|---|
| Material | SS 304, SS 316, SS 316L |
| Weave Type | Plain Weave, Twill Weave, Dutch Weave, Plain Dutch Weave |
| Mesh Count | 4 mesh – 635 mesh |
| Wire Diameter | 0.02 mm – 2.00 mm |
| Aperture / Opening Size | 0.02 mm – 6.35 mm |
| Open Area | 15% – 80% depending on mesh count and wire diameter |
| Width | Up to 2000 mm, custom width available |
| Length | Rolls up to 30 m, or cut-to-size pieces |
| Surface Finish | Bright, Pickled, Passivated |
| Temperature Resistance | -200°C to 800°C depending on material and environment |
| Corrosion Resistance | Excellent, varies by material grade |
| Packing | Moisture-proof paper, plastic film, woven bag, wooden case |
| Standard / Tolerance | ASTM E2016, ISO 9044, DIN 4188, AISI standards |
* Custom specifications are available upon request.
Material Options
Applications

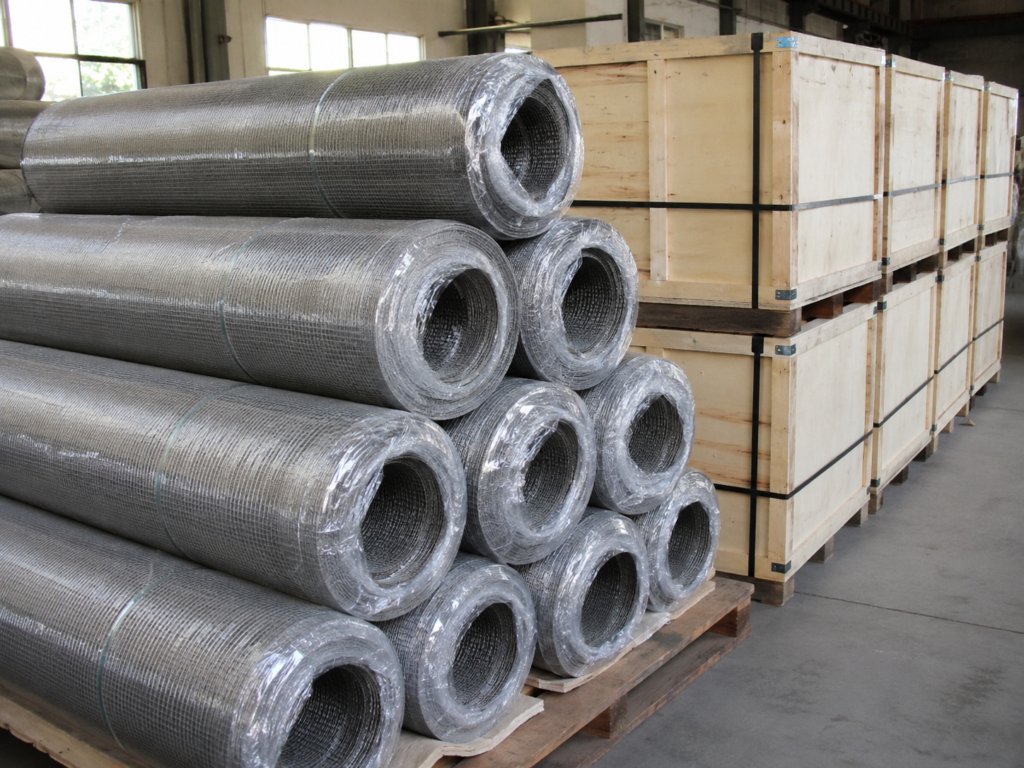

Packaging & Delivery
- Wrap in moisture-proof paper.
- Plastic film + woven bag
- Wooden case or pallet available
- Clear labels with size & material
- Export-ready packing for shipment
Technical Downloads
FAQ
Can you customize mesh count and wire diameter?
Yes. We can customize mesh count, wire diameter, roll width, sheet size, and cutting format according to your filtration or screening requirements.
What is the difference between SS304 and SS316 filter mesh?
SS304 is suitable for general industrial use, while SS316 offers better resistance to chlorides, chemicals, and harsh environments.
Can the mesh be cut to size or supplied in discs?
Yes. We can supply rolls, sheets, strips, cut-to-size pieces, and filter discs based on your drawings or sample requirements.
What information should I provide for a quotation?
Please provide material grade, mesh count or opening size, wire diameter, roll width or sheet size, quantity, application, and destination country.
How is stainless steel filter mesh packed for export?
The mesh is usually wrapped with moisture-proof paper and plastic film, then packed in woven bags, cartons, pallets, or wooden cases for export shipment.
Related Products

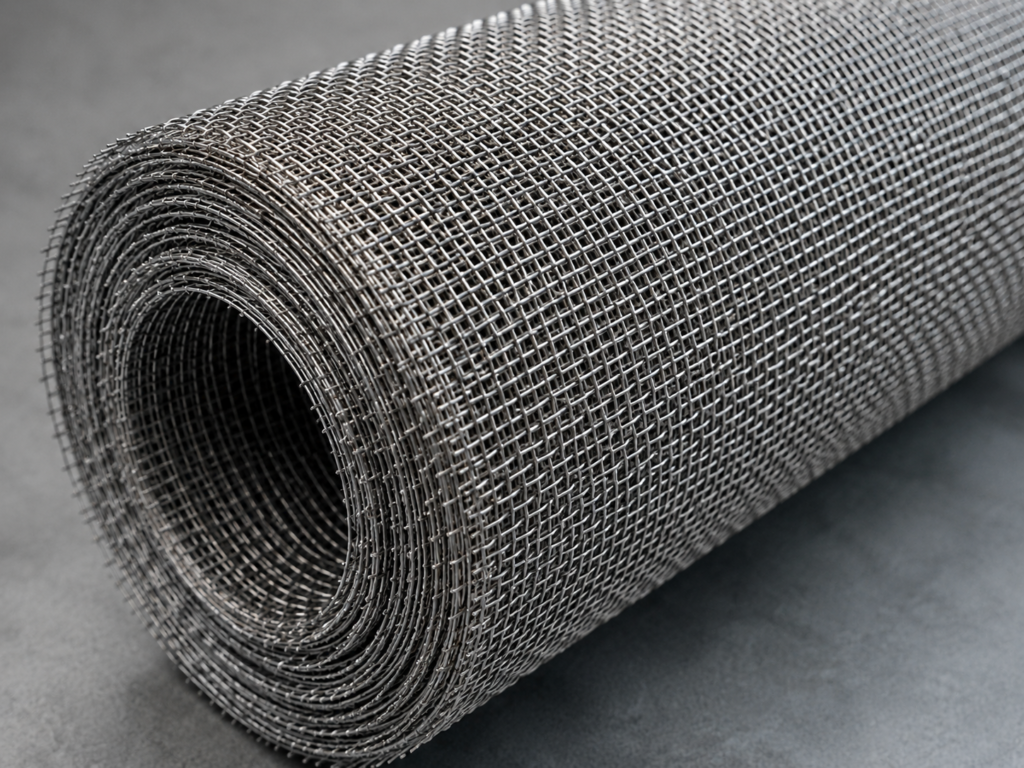

Stainless Steel Woven Mesh
